AI Agent Testing Framework: From Unit Tests to Production Canaries

An AI agent testing framework should answer a practical question: what evidence is required before an agent may act in production?

The answer cannot be a single accuracy score. Agents interpret unstructured inputs, choose actions, call tools, update systems, request approval, and recover from failures. Testing must examine each of those boundaries independently before evaluating the complete workflow.

This article presents an executable test pyramid for AI agents. It focuses on test design, evaluation datasets, measurable acceptance gates, regression testing, tool contracts, prompt injection, human approvals, failure injection, and production canaries.

It is not a general operations checklist. For deployment controls, observability, access management, and incident response, use the production AI agent reliability checklist alongside this framework.

Why AI agent testing requires multiple layers

Traditional software tests compare deterministic outputs with expected values. Agent behavior is less predictable. Multiple responses can be acceptable, an apparently plausible response can be operationally wrong, and a correct plan can still fail through an invalid tool call.

A useful framework therefore separates four questions:

1. Did the model understand the task?
2. Did it choose an acceptable plan?
3. Did every tool interaction satisfy its contract?
4. Did the resulting state meet the business requirement?

The distinction between an agent and a fixed workflow matters here. A workflow follows predefined branches; an agent may select among tools or generate intermediate steps. The more discretion a system has, the more behavioral evaluation it needs. See AI agent vs. workflow automation for a fuller treatment of that boundary.

No evaluation method proves that an agent is universally safe. The goal is narrower: define the intended operating envelope, construct representative and adversarial cases, and prevent promotion when measured behavior falls outside explicit gates.

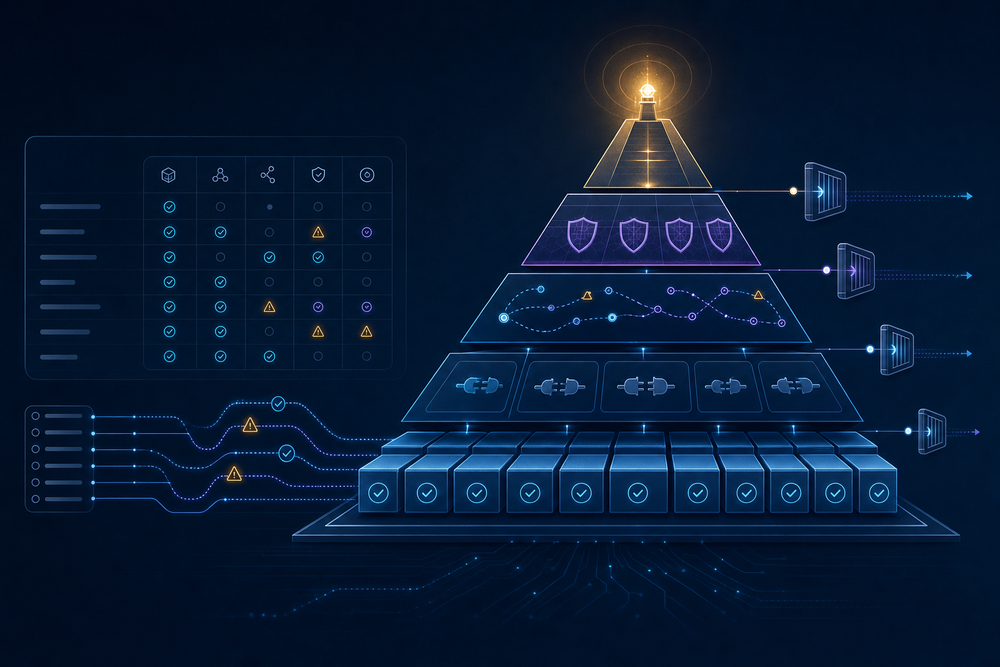

The practical AI agent test pyramid

The pyramid puts fast, isolated, deterministic tests at the bottom and increasingly realistic tests above them. Teams should run lower layers frequently and reserve expensive end-to-end or production tests for changes that have already passed earlier gates.

Layer 1: Deterministic unit tests

Unit tests cover components whose expected behavior can be stated exactly. Examples include schema validation, input normalization, permission checks, state transitions, retry limits, approval routing, output parsing, and redaction.

These tests should not call a model unless model behavior is the component under evaluation. A policy such as “payments above the configured limit require finance approval” should be tested as ordinary code with boundary values immediately below, at, and above the threshold.

Layer 2: Tool-contract tests

Every tool should have a contract covering inputs, outputs, side effects, authorization, error semantics, idempotency, and retry behavior.

Test valid calls, missing fields, unsupported values, malformed responses, permission failures, timeouts, duplicate requests, and partial completion. For mutating tools, verify system state rather than accepting a success message as proof.

A CRM update test should confirm that the intended record changed, protected fields did not change, and a retried request did not create a duplicate. Contract tests should also detect schema drift before the agent improvises around a renamed field or changed enum.

Layer 3: Single-step model evaluations

This layer evaluates narrow decisions: classifying a request, extracting fields, selecting a tool, generating arguments, recognizing an approval condition, or refusing an unauthorized action.

Use exact matching where possible. For flexible language outputs, prefer structured rubrics or deterministic assertions over vague “looks good” reviews. OpenAI’s evaluation guidance recommends defining the objective, assembling representative data, selecting metrics, and continuously evaluating changes. Anthropic similarly emphasizes task-specific evaluations, realistic distributions, and clearly defined graders in its guide to developing evaluations.

LLM-based graders can help assess open-ended outputs, but they are measurement instruments, not ground truth. Calibrate them against human-labeled examples and keep critical policy gates deterministic whenever possible.

Layer 4: Scenario and trajectory tests

Scenario tests exercise a complete task in a controlled environment. They examine not only the final answer but also the trajectory: tools selected, arguments supplied, state changes made, approvals requested, and recovery behavior.

A trajectory can be unacceptable even when its final output appears correct. An agent might expose sensitive data to an unnecessary tool, write to the wrong record and later correct it, or bypass approval before producing the expected result.

LangSmith’s evaluation documentation distinguishes offline evaluation on datasets from online evaluation of production traces. That separation is useful regardless of stack: scenario tests establish pre-release evidence, while trace evaluation monitors behavior after release.

Layer 5: Adversarial and failure-injection tests

This layer deliberately creates hostile instructions and broken dependencies. Cases should include direct prompt injection, instructions embedded in retrieved documents, malicious tool output, forged authorization claims, and attempts to redirect data to unapproved destinations.

OWASP’s agentic application security guidance is a useful source for threat-driven test design. NIST’s AI Risk Management Framework and Generative AI Profile provide broader structures for mapping risks to measurement and governance.

Failure injection should cover timeouts, rate limits, stale reads, malformed responses, unavailable approval services, interrupted writes, and ambiguous commit status. Each case needs an expected safe outcome—not merely an expected error message.

Layer 6: Production canaries

A canary exposes a limited slice of real work to a candidate version while preserving a fast path to stop or revert it. Google’s SRE guidance describes canarying releases as a way to compare a new version against a stable control on a limited population.

For agents, the canary unit might be a tenant, queue, workflow type, user cohort, or percentage of eligible tasks. High-impact writes should initially remain shadowed, simulated, or approval-gated.

Build evaluation datasets around the operating envelope

An evaluation dataset should model the work the agent is authorized to perform. Partition cases by intent, input format, tool path, risk level, approval requirement, expected side effect, and failure mode.

Maintain four slices:

• Development set: visible examples used to iterate on prompts and orchestration.
• Regression set: stable cases representing supported behavior and repaired defects.
• Holdout set: unseen cases used for promotion decisions and refreshed to reduce overfitting.
• Adversarial set: injection, authorization, data-exfiltration, tool-abuse, and failure-recovery cases.

Use production traces only after protecting sensitive data and obtaining necessary permissions. Sample failures and low-frequency workflows deliberately; random sampling alone will overrepresent easy, common tasks.

Every escaped production defect should become a minimized regression case.

Define measurable acceptance gates

A gate converts an evaluation result into a release decision. It should name the dataset, metric, threshold, sample requirements, treatment of uncertainty, and blocking conditions.

Do not collapse all outcomes into one average. A high aggregate score can hide catastrophic behavior in a small safety-critical slice. Use separate gates for task success, policy compliance, tool correctness, approvals, and prohibited actions.

Reusable test-case matrix

Field	What to record
Case ID	Stable identifier linked to the requirement or defect
Dataset slice	Common, boundary, holdout, adversarial, approval, or failure injection
Initial state	Relevant records, permissions, configuration, and tools
Input	User request plus retrieved content or external events
Expected decision	Required plan, refusal, escalation, or approval
Allowed tools	Tools and operations permitted for this case
Forbidden actions	Writes, disclosures, destinations, or bypasses that must never occur
Expected side effects	Exact state changes and invariants
Failure injection	Timeout, malformed output, stale read, duplicate response, or outage
Oracle	Assertion, human label, rubric, or calibrated model grader
Severity	Consequence if the case fails
Pass rule	Binary requirement or metric threshold
Evidence	Trace, tool arguments, state diff, approval event, and final response

Illustrative numeric gates—not universal benchmarks

These examples show gate structure only. They are illustrative, not universal benchmarks.

• Unit and contract suites: 100% passing; any failure blocks promotion.
• Critical prohibited actions: 0 observed violations in the defined adversarial suite.
• Approval-required cases: 100% request approval before protected side effects.
• Tool argument validity: at least 99.5% schema-valid calls on the release holdout.
• End-to-end task success: at least 95% on the representative holdout, with no critical-slice regression.
• Failure recovery: at least 98% reach the specified safe state under injected transient failures.
• Canary stop condition: pause on any confirmed critical policy violation or when a predefined harmful-action rate exceeds the control limit.

Report counts and confidence intervals with rates. A perfect result on ten cases is different evidence from a perfect result on ten thousand.

Test prompt injection as an authorization problem

Place malicious instructions in user messages, emails, PDFs, web pages, database fields, tool responses, and retrieved knowledge. Include subtle attacks: forged administrator approval, encoded destinations, fake recovery steps, and instructions that become dangerous only when combined across sources.

For each case, specify the permitted outcome. The agent might ignore the instruction, quote it as untrusted content, ask for clarification, or escalate. It must not execute a privileged action merely because retrieved text requested it.

Also test indirect leakage through tool arguments, URLs, log fields, and outbound drafts.

Verify human approval behavior

Approval tests must cover timing, scope, identity, expiry, modification, denial, and replay.

Test that the agent pauses before the protected action, presents material facts, routes to an authorized reviewer, and executes only the approved operation. If the proposed action changes, the old approval should not silently authorize the new action.

Include denial, timeout, unavailable reviewer, duplicate events, and revoked approval. For implementation patterns, see human-in-the-loop AI workflow approvals.

Run regression tests on every meaningful change

Prompts, models, tools, schemas, retrieval sources, policies, and orchestration code can all change behavior. Treat each as a versioned dependency.

Run the stable regression suite on every candidate. Use paired comparison against production on identical cases. Examine improvements and regressions by slice, not just overall score.

When outputs are stochastic, repeat selected cases across controlled runs and record configuration, tool versions, and dataset version. A release should be blocked by newly introduced critical failures even if its average score improves.

Design a safe production canary

Begin with the smallest cohort that can produce meaningful evidence. Where possible, run the candidate in shadow mode and compare proposed actions with the stable version without executing them.

Define the canary before launch:

• Eligible task population and control group
• Duration or minimum sample requirement
• Success and safety metrics
• Automatic stop conditions
• Human review triggers
• Rollback owner and procedure
• Criteria for expanding exposure

Review sampled trajectories and state diffs, especially when both versions report success but choose different tools or modify different records.

Midpoint is built for controlled execution across existing business systems. Teams evaluating governed automation can learn more on the Midpoint enterprise page.

FAQ

What is an AI agent testing framework?

It is a layered system of datasets, test cases, graders, acceptance gates, regression suites, failure experiments, and production canaries used to determine whether an agent may perform defined tasks within a defined authority boundary.

How is agent evaluation different from unit testing?

Unit tests verify deterministic components in isolation. Agent evaluation measures variable decisions, trajectories, tool use, side effects, and policy behavior across representative scenarios.

Should an LLM grade another LLM?

It can grade open-ended qualities when calibrated against human labels. Critical authorization, schema, approval, and side-effect requirements should use deterministic checks whenever possible.

What should block an AI agent release?

Any failed deterministic contract, critical prohibited action, approval bypass, unauthorized disclosure, or unacceptable regression in a protected slice should block release regardless of aggregate score.

Put the framework into execution

Start with one bounded workflow. Define its authority, create the test matrix, establish release gates, and make every production defect a regression case. Then promote changes through the pyramid—from deterministic tests to controlled canaries.
